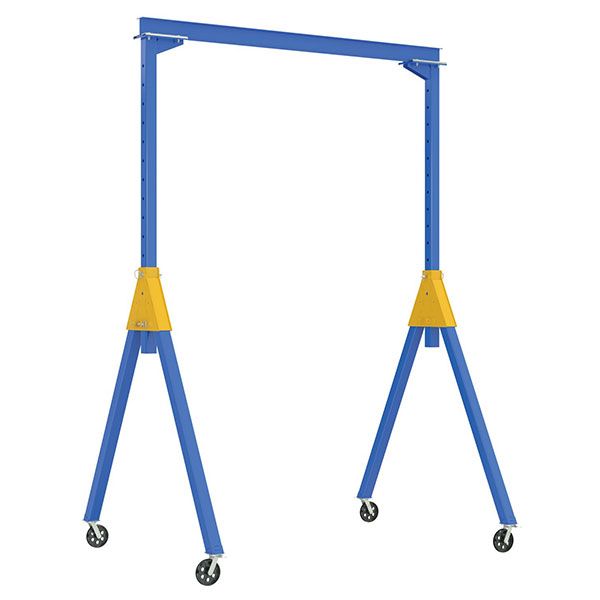

Adjustable Steel Gantry Cranes with V-Groove Casters - Knockdown

Adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Designed for semi-permanent or permanent applications.

Knockdown unit, assembly required
Heavy-duty welded steel construction for long lasting use
Beam length allows for use with items, both large and small
All units comply with applicable CMAA and ANSI specifications

MFG Part No.	Description	Attributes	Net Wt. (lbs)
AHSN-2-10-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 12 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	758
AHSN-2-10-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 14 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	834
AHSN-2-10-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 16 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	881
AHSN-2-15-7-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 7 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	563
AHSN-2-15-9-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 9 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	641
AHSN-2-15-10-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 10 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	678
AHSN-2-15-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 12 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	756
AHSN-2-15-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 14 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	829
AHSN-2-15-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 16 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	879
AHSN-2-20-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 12 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	753
AHSN-2-20-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 14 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	839
AHSN-2-20-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 16 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	875
AHSN-4-10-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 12 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	759
AHSN-4-10-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 14 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	834
AHSN-4-10-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 16 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	889
AHSN-4-15-7-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 7 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	683
AHSN-4-15-9-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 9 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	806
AHSN-4-15-10-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 10 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	632
AHSN-4-15-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 12 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	751
AHSN-4-15-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 14 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	827
AHSN-4-15-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 16 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	876
AHSN-4-20-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 12 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	751
AHSN-4-20-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 14 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	831
AHSN-4-20-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 16 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	879
AHSN-6-10-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 12 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	841
AHSN-6-10-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 14 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	901
AHSN-6-10-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 16 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	959
AHSN-6-15-7-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 7 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	631
AHSN-6-15-9-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 9 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	701
AHSN-6-15-10-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 10 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	747
AHSN-6-15-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 12 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	841
AHSN-6-15-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 14 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	901
AHSN-6-15-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 16 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	959
AHSN-6-20-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 12 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	841
AHSN-6-20-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 14 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	901
AHSN-6-20-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 16 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	959
AHSN-8-10-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 12 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	841
AHSN-8-10-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 14 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	901
AHSN-8-10-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. x 16 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	959
AHSN-8-15-7-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 7 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	631
AHSN-8-15-9-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 9 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	701
AHSN-8-15-10-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 10 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	747
AHSN-8-15-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 12 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	841
AHSN-8-15-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 14 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	901
AHSN-8-15-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. x 16 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	959
AHSN-8-20-12-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 12 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	841
AHSN-8-20-14-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 14 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	901
AHSN-8-20-16-VG	Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 20 Ft. x 16 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	959

Adjustable Steel Gantry Cranes w/ V-Groove Casters - Knockdown

Adjustable Steel Gantry Cranes with V-Groove Casters - Knockdown

Most of these items in this category are too large to ship parcel post like UPS. We will need to quote shipping cost for large items.
