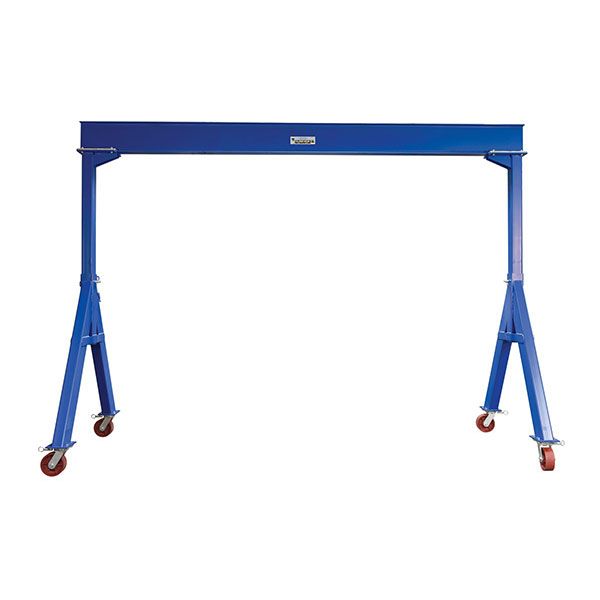

Fixed Steel Gantry Cranes

Fixed height steel gantry cranes are designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware.Unit comes standard four (4) position locking swivel casters with roller bearings (2K-4K units have glass filled nylon casters. 6K-8K units have phenolic casters. 10K model has steel casters). The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

Heavy-duty welded steel construction for long lasting use
Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
The fixed height of the unit provides constant lifting stability
All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

MFG Part No.	Description	Attributes	Net Wt. (lbs)
FHS-2-10	Steel Fixed Gantry Crane with Glass Filled Nylon Casters 10 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Overall I-Beam Length (ft.): 10	621
FHS-2-15	Steel Fixed Gantry Crane with Glass Filled Nylon Casters 15 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Overall I-Beam Length (ft.): 15	624
FHS-2-20	Steel Fixed Gantry Crane with Glass Filled Nylon Casters 20 Ft. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Overall I-Beam Length (ft.): 20	627
FHS-4-10	Steel Fixed Gantry Crane with Glass Filled Nylon Casters 10 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Overall I-Beam Length (ft.): 10	625
FHS-4-15	Steel Fixed Gantry Crane with Glass Filled Nylon Casters 15 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Overall I-Beam Length (ft.): 15	621
FHS-4-20	Steel Fixed Gantry Crane with Glass Filled Nylon Casters 20 Ft. 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Overall I-Beam Length (ft.): 20	625
FHS-6-10	Steel Fixed Gantry Crane with Phenolic Casters 10 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Overall I-Beam Length (ft.): 10	625
FHS-6-15	Steel Fixed Gantry Crane with Phenolic Casters 15 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Overall I-Beam Length (ft.): 15	730
FHS-6-20	Steel Fixed Gantry Crane with Phenolic Casters 20 Ft. 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Overall I-Beam Length (ft.): 20	735
FHS-8-10	Steel Fixed Gantry Crane with Phenolic Casters 10 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lb.): 8,000 Overall I-Beam Length (ft.): 10	705
FHS-8-15	Steel Fixed Gantry Crane with Phenolic Casters 15 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lb.): 8,000 Overall I-Beam Length (ft.): 15	723
FHS-8-20	Steel Fixed Gantry Crane with Phenolic Casters 20 Ft. 8000 Lb. Capacity Blue	Uniform Capacity (lb.): 8,000 Overall I-Beam Length (ft.): 20	765
FHS-10-10	Steel Fixed Gantry Crane with Ductile Steel Locking Casters 10 Ft. 10,000 Lb. Capacity Blue	Uniform Capacity (lb.): 10,000 Overall I-Beam Length (ft.): 10	910
FHS-10-15	Steel Fixed Gantry Crane with Ductile Steel Locking Casters 15 Ft. 10,000 Lb. Capacity Blue	Uniform Capacity (lb.): 10,000 Overall I-Beam Length (ft.): 15	915
FHS-50	Steel Fixed Gantry Crane with Glass Filled Nylon Casters 8 Ft. 500 Lb. Capacity Blue	Uniform Capacity (lb.): 500 Overall I-Beam Length (ft.): 8	510

Fixed Steel Gantry Cranes

Fixed Steel Gantry Cranes

Most of these items in this category are too large to ship parcel post like UPS. We will need to quote shipping cost for large items.
